On a main that climbs and then runs level, the weak point after a pump trip is the knee where the climb turns flat. On a 12 km DN800 example, a surge vessel that holds the knee on its own needs 43.1 m³ of gas in a 104.5 m³ shell. A low one-way tank at the knee, 8 m above the pipe behind a check valve, moves the vessel’s critical point onto the plateau and cuts the shell to 37.8 m³ (−64 %) for 20.7 m³ of tank water. The drain limit on tank level, why the tank must never work alone, tank sizing and the HAMMER set-up — with three interactive charts.

A relief valve at the pump caps the pressure where it is installed, and on a 12 km DN800 main it does that well: even in the best case, set at 95 m, below the shut-off head of the pumps, it holds the pump end at 96.3 m. But after a pump trip the line still reaches vapour from end to end, and the peak out along the line is 127–143 m depending on the cavity model — straddling the 136 m PN16 allowable. The valve must pass 0.416 m³/s, 59 % of the pumped flow. Relief flow, capacity at full lift, Kv and Cv, set pressure and reseating, where a relief valve is the right answer, and the HAMMER set-up, with three interactive charts.

On a 12 km DN800 main, 400 kg·m² in total on the pump shaft keeps the whole line at or above +9.3 m after a power failure, with no upsurge above the steady 85 m; the bare motor and pump, at about 25 kg·m², protect nothing and the line reaches vapour. The price comes at every start: with half of rated torque available for acceleration the run-up takes 28.1 s. A pump coasts down on the energy in its rotating parts, and for as long as it coasts it keeps the column moving. Six inertias modelled, the flywheel disc sized, the motor start checked, the HAMMER set-up, and three interactive charts.

On one 12 km DN800 main after an instant pump stop, a 20 m³ vessel holds the line between +4.3 m and 119.2 m; a 400 kg·m² flywheel holds +9.3 m with nothing above the steady 85.0 m, if the motor can start it; a relief valve set at 95 m caps its own pump end but leaves the line at vapour and 127–143 m, straddling the 136 m limit. With no protection the line reaches vapour and 165–190 m. There is no best surge device, only the right one for a given line, load case and site. The article adds screening formulas, site factors, a weighted decision matrix, a HAMMER procedure and four interactive charts.

Desalination stops at the plant fence and building services start at the site boundary, so nobody adds up the whole chain. A litre reaching a top-floor tap costs about 6 kWh/m³ on the coast and 10 inland, where transmission — not desalination — is the largest term. The tower then evaporates 2,400 m³ a day off its cooling towers, carrying embodied energy equal to roughly a tenth of the chiller plant’s own consumption and appearing on no energy model. With three interactive charts and the levers ranked by what they actually return.

Every megatall tower has a pool, and increasingly it is on the roof — which transforms an ordinary building service into one of the hardest loads in the building, because evaporation depends on air movement and at 300 m there is a great deal of it. The same 400 m² of water loses 384 kg an hour exposed: a 262 kW latent load and 9 m³ a day of makeup. Shelter it and that falls to 104 kW — architecture beating plant. Plus turnover, backwash, balance tanks, spa risk and the 900-tonne mass at roof level — with three interactive charts.

A refuse chute is the only system in a tall building deliberately designed to drop objects hundreds of metres in free fall. A five-kilogram bag reaches 103 km/h and gets to 90 % of terminal velocity in the first 70 metres — so a 600 m chute is no worse than a mid-rise one, but it delivers 2,000 J per bag into a base detail that must be designed for it. Plus the chute as a 200 Pa chimney pushing odour out of the upper hoppers, fire interlocks, and the structure-borne noise of a bag at 100 km/h beside a bedroom — with three interactive charts.

A megatall tower has around 30,000 control points, and the field networks that carry them do not scale gracefully. Five hundred points on one BACnet MS/TP trunk is a 3.6-second poll cycle; let a single legacy device force 9,600 baud and it becomes twenty-nine. A 150-floor building needs roughly ninety field segments, which is why the architecture must be an IP backbone with zone-level controllers matching the mechanical zoning. Plus the life-safety boundary, trending that costs 168 GB a decade, and metering hierarchies that close — with three interactive charts.

Water reuse is usually presented as a sustainability gesture and designed as an afterthought, which is why so many schemes end up starved or overflowing. It is actually a matching problem: greywater is about twice the volume WC flushing can absorb, so a flush-only scheme throws half its source away — while the cooling towers next door drink 1,800 m³ a day that the same greywater covers only 13 % of. Treatment standards by end use, plant and storage sizing, honest economics with operating cost included, and the dual pipework that these schemes actually fail on — with three interactive charts.

Two towers of identical height can have completely different cooling loads, plant and economics — because one has a 30 m floor plate and the other a 60 m one. The slender tower carries twice the façade per square metre of floor and is 60 % envelope-driven; the wide one is internally driven at 43 %. Plus what really changes with height (the crown sees 2.5× the solar gain of the podium for identical glass), and the diversity that turns a 50 MW connected load into a 30 MW plant — with three interactive charts.

Standby generators and diesel fire pumps only matter on the day everything else has failed — and both run on a fuel that must be stored in quantity, moved vertically through occupied floors, and kept ready for years without degrading. A 5 MW set with 24 hours of autonomy needs 26 m³ — 22 tonnes of diesel; put the generators on a 300 m mechanical floor and the riser carries 25 bar of flammable liquid through occupied space. Plus NFPA 20 dedicated fire pump fuel, and the five-year-old diesel that actually causes standby failures — with three interactive charts.

Every megatall development has an atrium, and every atrium is a compartment the fire code was not written for — its whole purpose is that it is not divided. A 5 MW fire drops the clear layer in a 20 m atrium to head height in about nine minutes; holding it at 6 m needs 33 m³/s of exhaust. The exhaust is the easy half: the same air has to come back in below 1 m/s, which means 32 m² of free opening — an architectural decision no fan can fix later. Plus plugholing, pre-stratification and hot smoke testing — with three interactive charts.

Water treatment is the last line in the tender, the first thing value-engineered out, and the only system whose neglect degrades every other system at once. Half a millimetre of scale — what you would call “a bit of a film” — raises the condensing approach by 5 K and the chiller’s power by 12.5 %, continuously, invisibly. Meanwhile a pitting factor of four turns a comfortable 59-year corrosion allowance into 15 years. Side-stream filtration, closed-system oxygen control, cooling tower chemistry, and the monitoring that must be designed in — with three interactive charts.

Every megatall tower sits on a deep basement below the water table, and that creates two problems that behave nothing like each other. The flow is set almost entirely by the ground — the same 20 m excavation takes 3 L/s in silt and 326 L/s in sand and gravel. The pressure is set by the water table: 20 m above the slab is 9,000 tonnes of uplift on a 1,000 m² raft. Choose a drained basement to relieve it and the dewatering pumps become structural elements protecting the room that holds all the building’s plant — with three interactive charts.

A mixed-use tower puts kitchens on the podium and near the crown, and every one needs a duct that runs unbroken to the roof — lined with combustible deposit, passing through occupied floors, at once a ventilation system, a fire hazard and a fire-rated compartment. It is governed by a rule no other duct obeys: a minimum velocity. Design at 10 m/s and demand control reaches 25 % flow and 12 % fan power, entirely within the limit. Plus make-up air and the pressure relationship that decides whether the hoods capture at all — with three interactive charts.

A megatall tower cannot be commissioned the normal way, because the normal way assumes the building is finished before you start. Six zones done sequentially take 48 weeks; staggered as a pipeline they take 23 — but only if the design made each zone isolatable. Three thousand terminals is over 400 man-days that is almost never in the tender, and PICVs remove most of it. Plus seasonal returns written into the contract, correcting capacity tests to design conditions, and why the first zone commissioned early as a prototype is worth 4 times less to fix per defect — with three interactive charts.

Thermal storage is the only way to buy cooling at one time and use it at another — but in a tower a physical constraint settles the design before economics is discussed. Storing 128 MWh as chilled water needs 13,757 m³, nearly fourteen thousand tonnes; as ice it is 1,538 m³. Partial storage cuts chiller capacity by 40 %, the tariff arbitrage pays over a million a year — and making ice costs about a quarter of your COP, so the plant uses 11 % more energy. Storage buys capacity, not efficiency — with three interactive charts.

The car park is the least glamorous space in a development and the one most likely to be grossly over-ventilated. A prescriptive 10 air changes an hour demands 41.7 m³/s where the actual CO dilution needs 11.6 — and the factor of three and a half buys nothing but a bigger fan and a permanent bill. Demand control, jet fans versus ducts and the 300–500 mm of clear height they give back, fire mode and the make-up air path everyone forgets, and what electric vehicles change — with two interactive charts.

Connecting a tower to a district network does not simplify the design — it replaces a plant you control with a contract you cannot renegotiate, and ΔT stops being an efficiency metric and becomes a bill. Deliver 4 K where you promised 8 K and the capacity charge doubles for identical cooling. The heat-exchanger approach you pay for twice (1.5 K saved on plates comes back as 15 % more coil area in every room), pressure-independent valves, and why at low ΔT the temperature sensors — not the flow meter — dominate what you pay — with three interactive charts.

A megatall tower is not a static object. It shortens by roughly 700 mm over its life as the concrete creeps and dries, and about 280 mm of that arrives after the risers are anchored — two and a half times their thermal movement, and additive to it. Core and perimeter shorten by different amounts, quietly shearing every horizontal run between them. Plus why plastic risers move ten times as far as steel, how to size an expansion loop, and the bellows pressure thrust that puts eight tonnes on a bracket detailed for pipe weight — with three interactive charts.

Hot water is the only building service that can harm people through ordinary operation rather than through failure — and the design is a genuine conflict, because hot enough to be safe is hot enough to scald. At 55 °C a 4-log kill takes an hour, at 60 °C eight minutes, and at 46 °C it never happens. Why the answer is spatial rather than thermal, why a recirculation return flow of a quarter of a litre per second is what makes remote branches fail, dead legs, storage versus turnover, and keeping cold water cold in a warm shaft — with three interactive charts.

Every mechanical floor sits directly above somebody’s bedroom. Vibration isolation is governed by one ratio, and below √2 an isolator amplifies rather than isolates — so a 6 mm pad under a 600 rpm machine gives 29 % isolation and under anything slower makes it worse. Why you specify static deflection and never isolator type, why the check must be at minimum VFD speed, the flanking paths that leak past perfect isolators, plant-room absorption versus partition transmission loss, and variable speed as a free 8 dB — with three interactive charts.

The lifts are somebody else’s package, yet four of their consequences are squarely MEP. A bank of eight machines dumps 108 kW into a room that is usually unconditioned in the concept design; the hoistway is the building’s dominant chimney; a car at 10 m/s and 60 % blockage generates 160 Pa of piston pressure on top of the stack effect, fixed far more cheaply by shaft dimension than by equipment; and pressurisation has a 3.6:1 turndown between its doors-open and doors-closed cases — with three interactive charts.

Refrigerant is the only fluid in the building that is a gas and a liquid at once, and that is what makes towers hard. A 100 m liquid lift costs 9.3 bar and about 15 K of sub-cooling you do not have — the real reason VRF catalogues state height limits — unless you put the condensing plant above the evaporators and let the liquid fall. Suction risers sized for minimum load so the oil comes back, the ASHRAE 15 concentration limit set by the smallest room the circuit serves, what the A2L transition does to allowable charge, and machinery room ventilation at 70√G — with three interactive charts.

One line in a tall-building chilled-water schematic behaves completely differently from all the others: the condenser circuit is open, so the return column never pushes back and the pump lifts the full height forever. Put the chillers in the basement and the towers on a 300 m roof and that is 817 kW of pumping. Approach and wet-bulb optimisation against combined chiller and fan power, why the optimum is colder than the specification says, the water balance that has a 50 MW plant drinking 2,400 m³ a day, plume and recirculation at height, and Legionella control — with three interactive charts.

Outdoor air is the one thing a tall building cannot manufacture — it has to be captured from a moving atmosphere that behaves very differently at 600 m. Why an ordinary 10 m/s street wind becomes 600 Pa across the building and short-circuits any shared intake plenum, how to place intakes and discharges, what a total-enthalpy wheel is actually worth in Jeddah versus Riyadh (three times the difference), the annual fan energy hidden in filter pressure drop, and the case for separating ventilation from cooling — with three interactive charts.

Three consultants will tell you where the mechanical floors go, and none of them is the MEP engineer — yet their spacing sets the vertical zone height that every pressure system in the tower must live inside. The area economics of plant floors versus riser shafts, why central all-air distribution stops scaling around 40 floors, the zone-height table that decides the building (domestic water governs at 36 m until you fix it with PRVs), making levels coincide with outriggers and refuge floors, and layout for rigging and maintenance — with three interactive charts.

Fire water reaches the top floor once; domestic water has to reach it every time somebody opens a tap. The pressure window at a fixture is only 3.5 bar wide — worth 36 m of building — so a 600 m tower needs seventeen zones unless you zone the riser on pipe class and control at the floor. Why the 1940 Hunter curve over-predicts modern demand by three times, gravity down-feed vs zone-boosted pumping and what height costs in kWh/m³, storage turnover and water quality, backflow and transients — with three interactive charts and installation tricks.

The pump needs 39 m of head; the pipe at the base must hold 600 m — and getting those two the wrong way round is the most expensive mistake in tall-building chilled water. Why a closed loop cancels the static column, how to build the head honestly without padding it, vertical pressure zoning and the heat-exchanger cascade that can drive plant supply below the freezing limit, pumping architectures, BEP/POR selection, the expansion vessel on the suction, and how DP sensor location changes part-load power by 4× — with three interactive charts and installation tricks.

There is a chimney inside your building that nobody drew and nobody sized. How big the stack pressure really gets (270 Pa over 600 m), where the neutral plane sits and how to move it deliberately, why a stair door needs 347 N to open, why Gulf towers are governed by the summer reverse stack rather than winter, how sky-lobby compartmentation and vestibules fix it, and the megawatt-scale infiltration penalty — with three interactive charts and installation tricks.

An aerial ladder reaches the tenth floor; a megatall tower has eighty more above it — so the building must fight its own fire. Why static pressure forces vertical pressure zoning of the standpipes, how water is pumped and stored up the tower, the NFPA 14 residual pressures that govern, the stack effect and door-force problem that defeats smoke control, stair pressurization, fire-pump duty, refuge floors and phased evacuation — with three interactive charts and installation tricks.

Water goes up under pressure you control; drainage comes down under gravity you don't — and what governs the design is the air. How a drainage stack really works (terminal velocity, annular flow, air entrainment), sizing with Wyly-Eaton, the air-pressure regime and trap-seal protection (±375 Pa), ventilation, stack offsets and the base bend, and gravity vs siphonic roofs — with three interactive charts and installation tricks.

A chiller plant is the largest energy user in most buildings, and where design on paper diverges most from the plant that runs. The configurations (constant primary, primary–secondary, variable primary flow, series counterflow), the design pitfalls — sizing, staging, part-load efficiency and the Low Delta-T Syndrome — and the installation problems that wreck real plants, in three interactive charts.

A water balance built once a year is a post-mortem; controlling NRW means measuring the loss every night, in every zone, automatically. How a Water Management System like NETBASE runs the smart-water data chain — loggers and SCADA into the night-flow engine, burst alarms, detection latency, and ranking where to send the crews — with three interactive charts and the in-software workflow.

Every utility produces more water than it sells. Why a single "% NRW" is the wrong KPI, how the IWA water balance separates the field problem (real losses) from the back-office one (apparent losses), how the Infrastructure Leakage Index measures loss honestly, and where the economic level of leakage sits — in three interactive charts.

Pressure is the master variable for leakage. The FAVAD/N₁ law that makes a pressure cut save more than its share, dividing the network into DMAs to read the loss from minimum night flow, and fixed vs flow-modulated PRV control — the engineering of Non-Revenue Water, in three interactive charts.

The shape of the network fixes its pressure, reliability, water quality and cost before a pipe is sized: why a loop splits the flow and cuts head loss to a quarter, why a single break isolates a tree but not a grid, and why dead-ends go stale — with three interactive design charts.

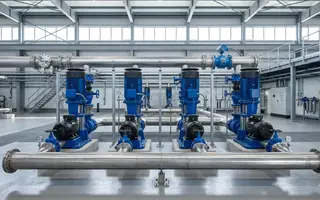

A station is a system, not a pump: duty + standby sized by firm capacity and the N+1 rule, staging across the daily demand curve, the case for a VFD lead, and the suction-side NPSH physics that decides where the pumps sit. Three interactive design charts and a worked station for a town of 50,000.

Every storage reservoir holds three volumes at once — balancing, fire and emergency — each sized by a different question. The mass-curve method for the daily peak, the code-driven fire volume that ignores population, the redundancy trade behind emergency storage, and the water-age tax you pay for over-sizing — with three interactive sizing charts and a worked town of 50,000.

Clogging — not efficiency — is failure mode #1. Non-clog vs vortex vs chopper selection with the energy price of clog resistance, force-main scouring velocity, the V = T·Q/4 wet-well law, and self-cleaning geometry per ANSI/HI 9.8 — with three interactive design charts.

Purchase price is ~6% of what a continuously running pump costs over 20 years — energy is ~84%. The Europump/HI LCC methodology, specific energy (kWh/m³) benchmarking, MEI and IE floors, and the efficiency premium that pays back in under two years — with three interactive cost explorers.

H–Q, efficiency, power and NPSHr live on one sheet — and every value must be read at the same flow, on your trim. ISO 9906 tolerance grades, speed/trim/viscosity corrections, and the classic misreadings that cause field failures — with three interactive charts and worked numbers.

Why two pumps almost never give twice the flow, why a single pump sometimes gives none at all, and how the system curve decides the configuration. Combined curves, the diminishing return, load-sharing failure modes, and duty/standby/assist staging — with two interactive charts.

Why the pump you select never operates where the catalogue says it will. Static vs. friction head, the duty-point intersection, BEP/POR/AOR limits, and the costly oversizing trap — with two interactive curve-matching charts and a worked pump-station example.

Pump trip, start-up, check-valve slam, emergency closure — which event actually sets the design pressure? A scenario-by-scenario walk through the transient envelope, with three interactive charts and a worked 5 km ductile-iron example.

From an existing water model to a full surge study — pump shutdown setup, four-quadrant pump physics, wave speed, calculation options, EPS initialization, and reading the transient envelope where the column-separation slam appears.

Why do results get worse after adding air valves? Why does a big surge appear with no air pocket visible? Answers to the five questions engineers ask most often after their first HAMMER simulation — plus profile animation setup and Extended Node Data walkthrough.

The complete mathematical framework governing surge pressure vs. closure time — from the Joukowsky equation and critical time T_c to the slow-closure attenuation formula. Includes three interactive calculators, an eight-scenario numerical example, and a detailed workflow for modelling valve closure in Bentley OpenFlows HAMMER.

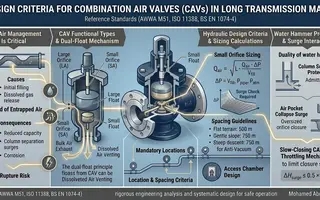

A systematic methodology for selecting, sizing, and locating Combination Air Valves (CAVs) on long transmission mains — from dual-float mechanics and orifice sizing calculations to HGL-based placement, water hammer surge interaction, and installation requirements. Includes interactive diagrams and a DN 800 mm worked example.

Sizing an air-over-water surge vessel for a 12 km DN800 main: the gas law in absolute pressure, a rigid-column estimate, then transient iteration with column separation. The result is a 20 m³ vessel with 3.5 m³ of air, with the steps to reproduce it in HAMMER.

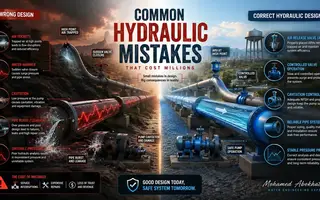

Six critical and recurring mistakes in hydraulic modeling — from ignoring transient analysis entirely to specifying surge protection without simulation. A practitioner's perspective from 700+ km+ pipeline projects.

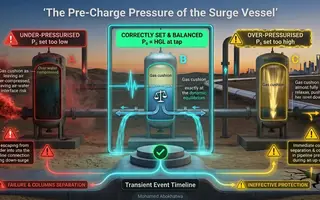

At 85 m of head the gas in a surge vessel sits at 9.35 bar abs. Leave out the atmosphere and the gas charge comes out 3.7 times too small. Transient runs on a 12 km DN800 main find the bladder pre-charges and air-over-water gas volumes that protect the line.

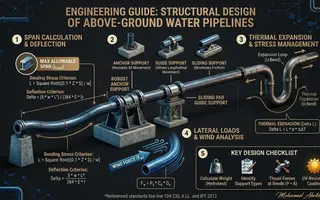

Above-ground pipelines are structural beams — not buried conduits. A systematic methodology for calculating maximum allowable span (bending stress and deflection criteria), managing thermal expansion, and designing for wind loads. Includes worked example for DN 600 steel pipe and a comprehensive design checklist.

FCVs and PRVs behave very differently during transient events. A practical guide to modelling control valve closure using the TCV approach in HAMMER — including manufacturer Cv curves, Dead Time (1–3 s), and the 4L/a closure time rule for protecting high points on large transmission mains.

Choosing the wrong boundary condition is a common modelling error with serious consequences. A rigorous comparison of Reservoir (fixed HGL) vs. Tank (dynamic HGL) in HAMMER — with guidance on SWRO desalination intakes, strategic transmission mains, and the numerical instability trap of undersized Tank areas.

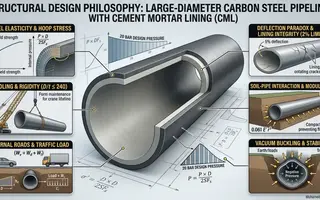

CML lining cracks at 2% deflection — far before the steel yields. A complete five-phase design walkthrough for DN 1600 mm steel pipelines under highway loading: D/t ratio check, hoop stress, Modified Iowa Equation for deflection, and vacuum buckling stability. Final wall thickness: 14 mm.

NPSH is the make-or-break parameter in pump station layout. A scenario-based guide covering suction lift, flooded suction, and submersible configurations — with vapor pressure corrections at 40–45°C seawater temperatures and a complete worked example for an SWRO intake pump station.

Static surge models become obsolete as systems age. A technical guide to building a Digital Twin for Surge — integrating 100 Hz pressure transducers, the Allievi equation in real time, and adaptive PID valve closure logic — to continuously protect 1200 mm+ transmission mains against pump trip events.

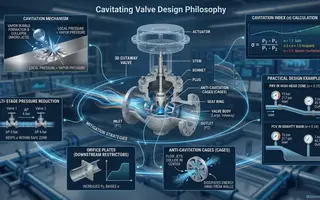

A 15-to-3 bar PRV pressure drop yields σ = 0.25 — severe cavitation territory where standard valves fail within months. The Cavitation Index explained with two worked examples, and three proven mitigation strategies: multi-stage reduction, anti-cavitation trim cages, and downstream orifice plates.

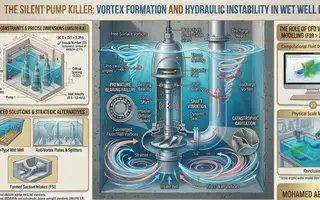

A swirl angle of just 3–5° at the suction bell significantly degrades pump efficiency and causes premature bearing failure. ANSI/HI 9.8 geometric constraints — submergence formula, back wall clearance, floor clearance — with guidance on trench-type wet wells and the role of physical scale modeling vs. CFD.

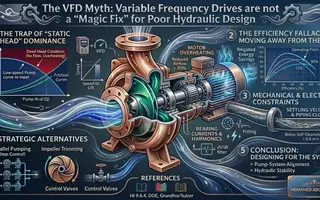

In high-static-head systems, reducing VFD frequency too far causes Dead-Head conditions — the pump rotates, consumes power, and moves zero water. A practitioner's guide to when VFDs work and when they don't, including impeller trimming and parallel pumping as more appropriate alternatives.

Improper air valve sizing and placement is a leading cause of large-diameter pipeline failure. A rigorous design methodology for DN 1000+ mains — HGL-based placement, vacuum protection sizing at ΔP = 0.35 bar limit, filling velocity below 0.3 m/s, and how to specify triple-function non-slam combination valves.

Air is both enemy and ally — throttling flow in steady state, yet preventing catastrophic collapse during pump trips. The HAMMER Discrete Gas Cavity Model (DGCM) limitation explained, with a hybrid protection strategy combining air valves and surge vessels for large transmission mains.

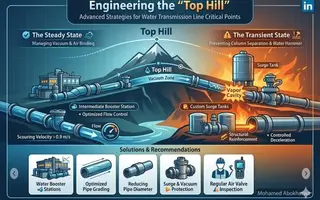

When a pipeline summit approaches the HGL, two failure modes emerge: air binding in steady state and column separation during pump trips. Design rules: maintain 5–10 m HGL clearance above pipe profile, minimum 0.3% ascending slope, and full vacuum-rated pipe class at critical summits.

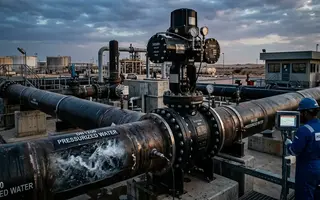

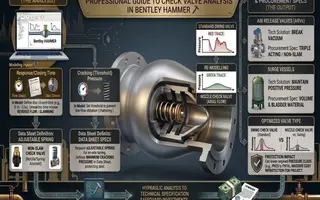

A 0.1-second adjustment in HAMMER is a procurement decision worth thousands. How check valve closing time and cracking pressure in the transient model translate directly into nozzle check valve specifications — and how the right specification can reduce pipeline pressure class from PN25 to PN16.

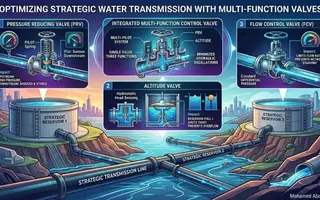

Three valves with fundamentally different control objectives and hydraulic behaviours. A concise comparison of PRV (downstream pressure), Altitude Valve (tank level), and FCV (flow rate limitation), with guidance on modern multi-pilot single-valve integration for compact valve chambers.

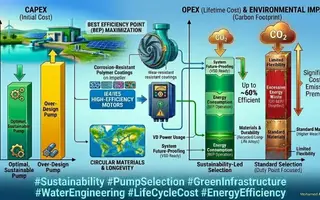

The pump purchase price is only 10–15% of total life cycle cost. Energy accounts for 80%. A framework for sustainable pump selection covering life cycle cost analysis, BEP operation, wire-to-water efficiency (IE3–IE5 motors), and designing pump stations for future demand growth.

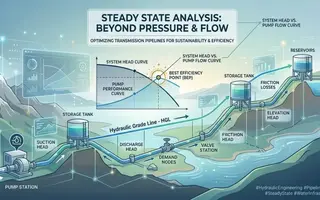

Every transient model begins from steady-state initial conditions. An incorrect baseline produces incorrect surge results. The three pillars — friction loss optimisation, BEP operating point verification, and pressure management — explained as the essential prerequisite to any surge study.

Surge analysis conducted after design is complete leads to expensive retrofits — pressure class upgrades, added vessel chambers, and revised pump station layouts. A practitioner's perspective on integrating transient analysis into the early design phase, from 700+ km pipeline projects in Saudi Arabia.

The gap between what is drawn and what can actually be built and operated costs projects dearly when ignored. Lessons on designing for buildability, anticipating field realities such as space constraints and unexpected interferences, and why "perfect designs" that cannot be executed are not a success.

The hardest engineering decisions are not made in the office — they are made on site, with incomplete information and no time. A reflection on the role of experience, judgment, and leadership in field decision-making, from 22 years of major water infrastructure delivery across Saudi Arabia.

Sustainability is engineered in — not appended after the fact. The Envision framework applied to water infrastructure design, covering resilience, resource efficiency, and community enhancement as engineering disciplines rather than policy aspirations — with practical applications in Saudi Arabian water projects.

Projects don't fail from a lack of expertise — they fail when alignment, ownership, and decision-making are not managed effectively at scale. Lessons from 100+ km pipeline networks and 200,000 m³/day treatment facilities in Saudi Arabia on managing multidisciplinary teams and stakeholder expectations.

Sustainability commitments only become real when reflected in engineering specifications, material selections, and design decisions. How sustainability professionals must be embedded in the design process from the earliest concept stage — and how early drawing integration is the key to future-proof infrastructure.

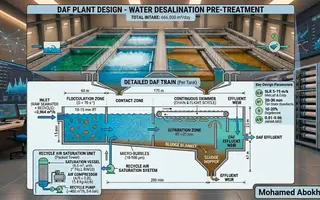

A technical guide to DAF system design for mega-scale SWRO plants — surface loading rates, retention times, air-to-solids ratio, and micro-bubble mechanics for a 300,000 m³/day facility.

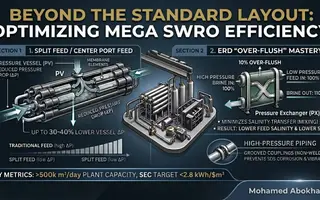

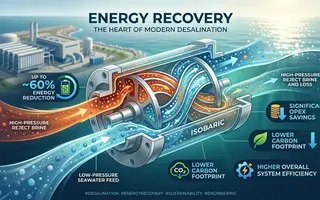

Advanced optimization strategies for SWRO facilities exceeding 500,000 m³/day — center port feed, pressure exchanger over-flush, and super duplex steel for 70+ bar systems.

Conventional gravity clarification + sand filtration versus membrane-based pre-treatment — trade-offs in SDI performance, space, and lifecycle costs for 100,000 m³/day plants.

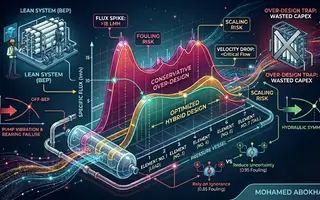

Why excessive safety margins backfire in RO plant design — flux distribution imbalances, pump BEP deviations, and the case for lean design with precise pretreatment control.

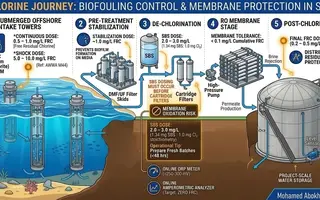

How chlorine acts as a double-edged sword in SWRO — from electro-chlorination at 0.5–1.0 mg/L to critical de-chlorination with sodium bisulfite before polyamide membranes.
